The integrated protection features of the new BMW X5 Protection VR6 were factored into the series production development process for the Sports Activity Vehicle (SAV). They include an armoured body and safety glass designed specifically for this model. The latest version of the protection vehicle therefore also meets the stipulations of Germany’s Vereinigung der Prüfstellen für Angriffshemmende Materialien und Konstruktionen (Association of Test Laboratories for Attack-Resistant Materials and Constructions – VPAM, for short) with regard to ballistic resistance and blast resistance. The official certification for the complete vehicle was issued in accordance with the guidelines for Bullet Resistant Vehicles (VPAM BRV) and the guidelines for Explosive Resistant Vehicles (VPAM ERV, third edition).

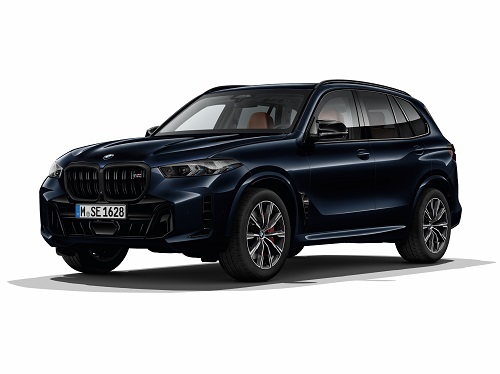

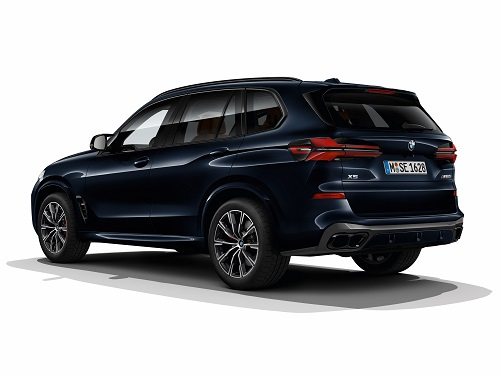

The new design of the exterior and interior ensures there is barely any perceptible difference between the BMW X5 Protection VR6 and the equivalent standard model. Its inconspicuous appearance on public roads represents an additional safety factor for individuals requiring special protection. The upgraded powertrain of the X5 Protection VR6 teams up with the BMW xDrive intelligent all-wheel-drive system and bespoke chassis technology to deliver the dynamic and assured performance that marks out an SAV from BMW and also enables flexible responses in potentially dangerous situations.

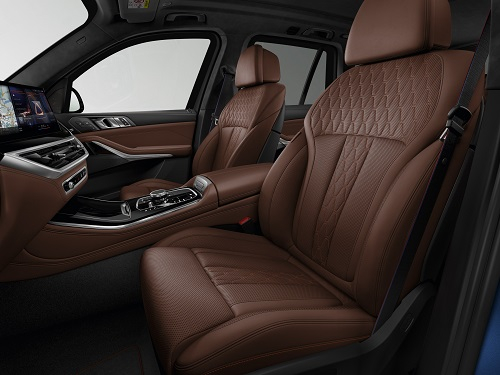

The BMW X5 Protection VR6 is fitted with sport seats as standard. These offer outstanding lateral support when the driver is exploring the limits of the car’s handling agility. Their functionality includes lumbar support and electric adjustment options for the seat height, seat angle, backrest angle and backrest width – including a memory function on the driver’s side. The sport seats are heated and their new Sensafin surfaces can be ordered in a choice of four colours. BMW Individual Merino extended leather upholstery in four colour variants and BMW Individual full Merino leather upholstery in three different tones are included on the options list. Also available as an option are comfort seats with fully electric adjustment. These can be specified as an option with active seat ventilation and a massage function.

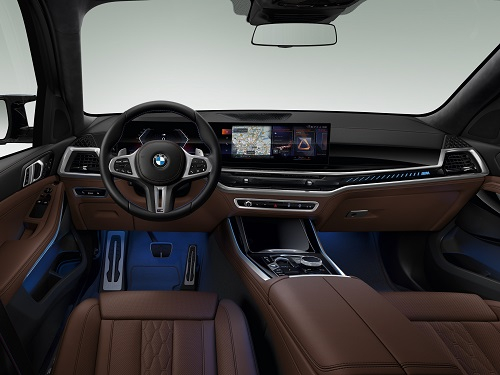

Standard specification for the new BMW X5 Protection VR6 also includes an M leather steering wheel, ambient lighting, a hi-fi speaker system and soft-close doors. The protection vehicle is also fitted as standard with the sensors and camera systems developed for the driver assistance systems in the BMW X5. Functions such as Surround View, Remote 3D View and the BMW Drive Recorder provide precise and detailed information on the area around the vehicle in all situations.
Effortless forward momentum and agile handling in any situation are the defining driving qualities of the new BMW X5 Protection VR6. The requisite drive power stems from a V8 engine whose latest incarnation boasts even more responsive power delivery and greater efficiency. The 4.4-litre unit harnesses the thermodynamic benefits of a cross-bank exhaust manifold, bank-symmetrical turbochargers and external engine oil cooling. Other new features include a reinforced crankshaft drive, improved turbocharging with a blow-off valve, an oil pump with increased capacity and a weight-minimised oil sump.
In addition to this, the eight-cylinder engine now also comes with 48V mild hybrid technology in the form of a crankshaft-mounted starter generator. Integrated into the housing of the eight-speed Steptronic transmission – which has also undergone an extensive upgrade – is an electric motor that generates an output boost of up to 9 kW/12 hp and 200 Nm (147 lb-ft) of torque, helping the engine to deliver a smooth, dynamic and, at the same time, efficient drive. The power needed for this is stored in a 48V battery that is charged extremely efficiently by recuperating energy on the overrun and under braking.
The new BMW X5 Protection VR6 succeeds in combining outstanding protection under armed attack with a discreet design and superb driving qualities. This is all thanks to its integrated protection features.
The armouring’s formed steel sections and the safety glass were specially developed for this model and harmoniously integrated into the vehicle’s overall concept on both a functional and design level. This meant that careful consideration was already given to aspects such as body gaps and the transitions between body and glass in the development phase.
The armouring for the passenger compartment and the safety glass are core elements of the protection features. Formed sections made of high-strength steel that have been perfectly tailored to the body’s contours can be found in the area around the doors, side frame, roof and bulkhead. An armoured partition for the luggage compartment and an aluminium splinter guard for the underbody round off the body-related security measures.
Extended underbody armouring and additional armouring for the roof are available as optional extras for the new BMW X5 Protection VR6. Standard specification also includes a self-sealing fuel tank with a special casing that seals itself after being hit by a bullet to prevent any loss of fuel.
A heating function for the windscreen and the front sections of the side windows comes as standard, as do electrically operated windows in the front. Another item on the model-specific standard equipment list for the new BMW X5 Protection VR6 is an intercom system for communicating with people on the outside. The controls for both this system and other model-specific functions can be found in an additional panel of switches in front of the selector lever on the centre console.
Further bespoke equipment features can be added to the new BMW X5 Protection VR6 to suit the intended purpose. These include flashing LED lights in the radiator grille at the front, flashing rear lights, roof-mounted light beacons including an acoustic signalling system and a roof antenna with an additional receiver for digital two-way radio. Flag poles are also optionally available for official occasions.
The BMW X5 Protection VR6 is the most powerful, most dynamic and worldwide biggest-selling vehicle of its kind. The new edition will celebrate its world premiere at the IAA Mobility 2023 international motor show in Munich. There it will be presented to the public for the first time together with the new BMW i7 Protection and new BMW 7 Series Protection. The new BMW X5 Protection VR6 has an outstanding skillset as a single vehicle for at-risk individuals. And it is also ideally suited to the role of support vehicle alongside the new protection vehicles based on the BMW 7 Series. Deliveries of the new model will get underway in February 2024.
